SAE J1772 TYPE 1 Charger Model & Spec
|
||||
|
Model No.
|
Rated Current
|
Power
|
Rated Voltage
|
Certificate
|
|
UPC-B2-16AC
|
8-16A Adjustable
|
3.5kW
|
AC 110-240V
|
FCC, ROHS, ETL
|
|
UPC-B2-32AC
|
8-32A Adjustable
|
7kW
|
AC 110-240V
|
FCC, ROHS, ETL
|
|
UPC-B2-40AC
|
8-40A Adjustable
|
9kW
|
AC 110-240V
|
FCC, ROHS, ETL
|
|
Certificates & QC
|
FCC, ETL(UL2594), RoHS, ES
|
|
ICCB Protection rank
|
IP65
|
|
Cable Protection rank
|
IP55
|
|
LCD display
|
2.4″ LCD Screen
|
|
LED indicator
|
Red/ Blue / Green
|
|
RCD
|
30ma AC++6ma DC
|
|
Input power
|
AC 110-240V
|
|
Charging cable
|
4.5M Type 1 (TPU Jacket) or customization
|
|
ICCB size
|
L220xW100xH60 (mm)
|
|
Start mode
|
plug & play
|
|
Operating temperature
|
-30℃ to 50℃
|
|
Warranty
|
2 years (both cable and ICCB)
|
|
lead time
|
30-35 days after deposit payment
|
|
Q’ty basis
|
based on 200pcs+ each, if lower than 200pcs, price with $2/PCS up, MOQ 20pcs each type
|
|
Payment Terms
|
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
|
|
Electrical Protection |
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
|
Materials Applied
|
Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection.
Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark. |
|
Customizing Logo
|
Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing
|
|

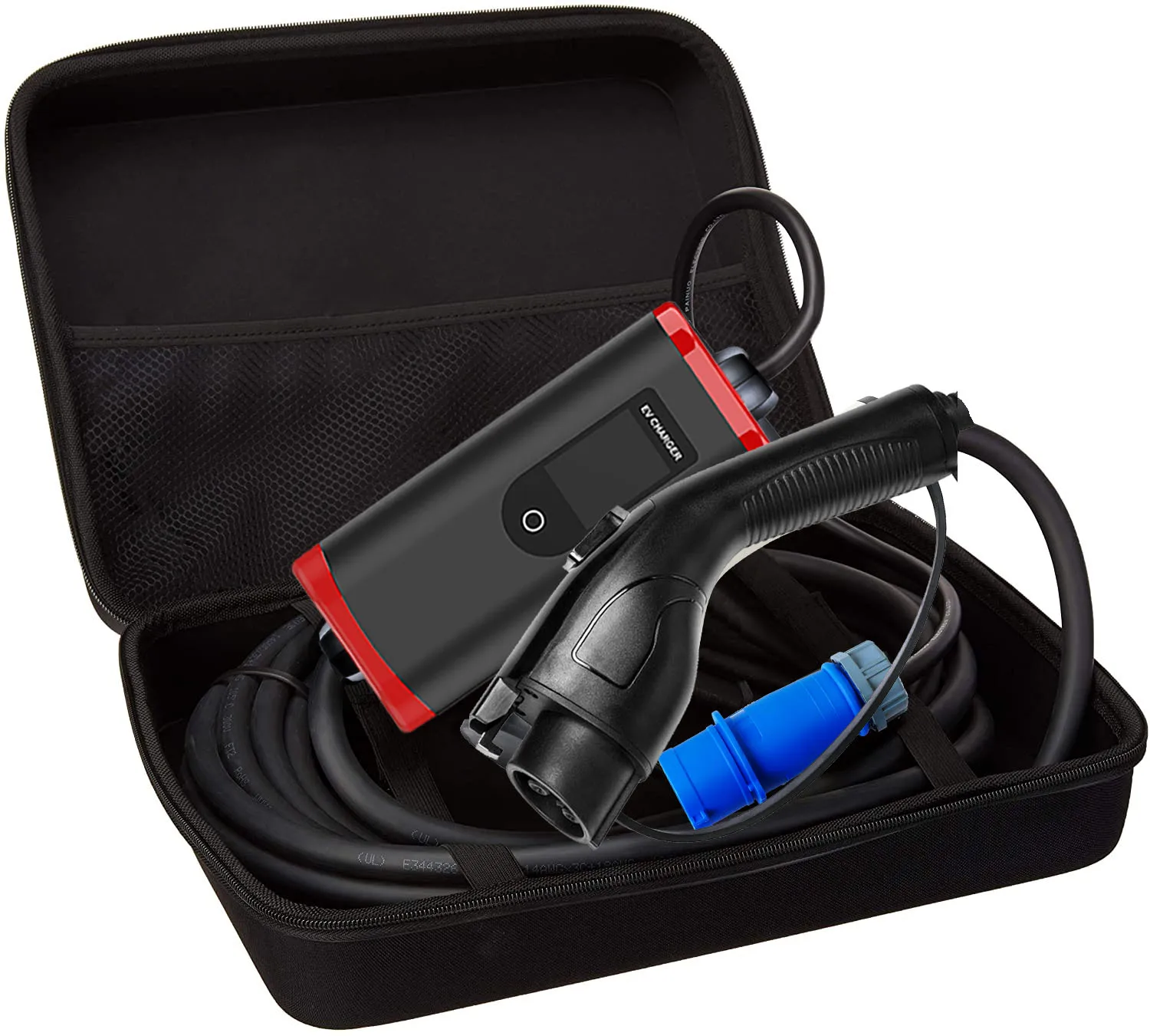

Package |
Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost) |
|
Features |
New upgraded model;Â Simple and exquiste appearance;
IP65, Weather proof; Leakage current protection; Current Switch, Time delay Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 16A-32A |
Â
Package
Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)
EN Standard Strong Patience.
The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.

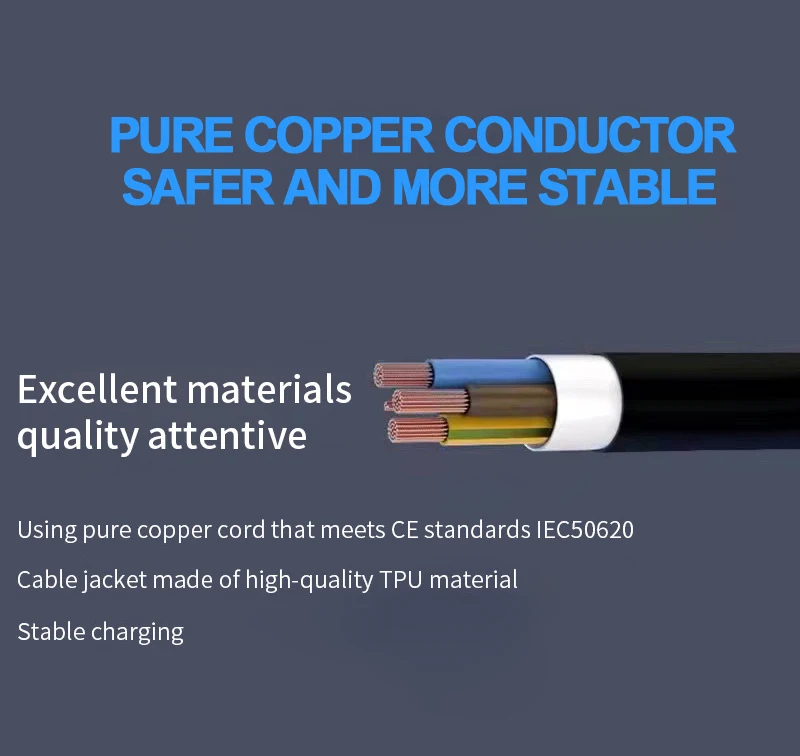

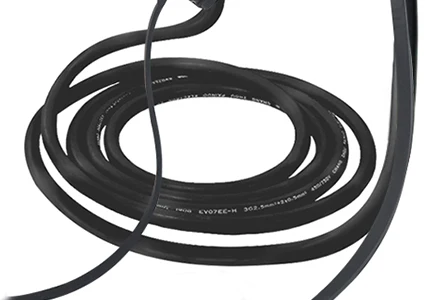

TPU Cable.
Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
Climate Friendly Stronger & Anti-aging.
The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Â
Â
Â

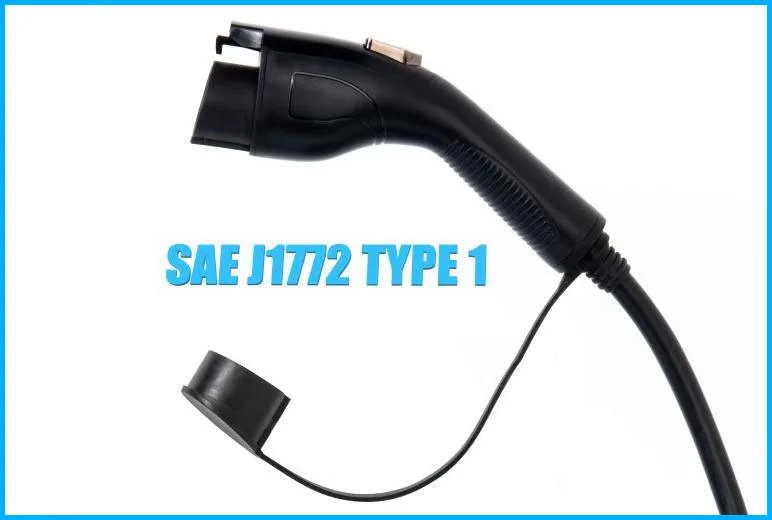

Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.
Â

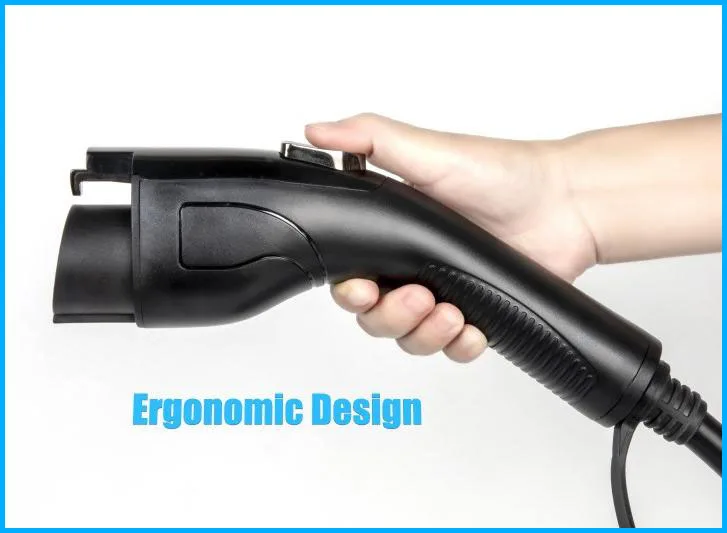

Ergonomic Design and Integrated Design
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.

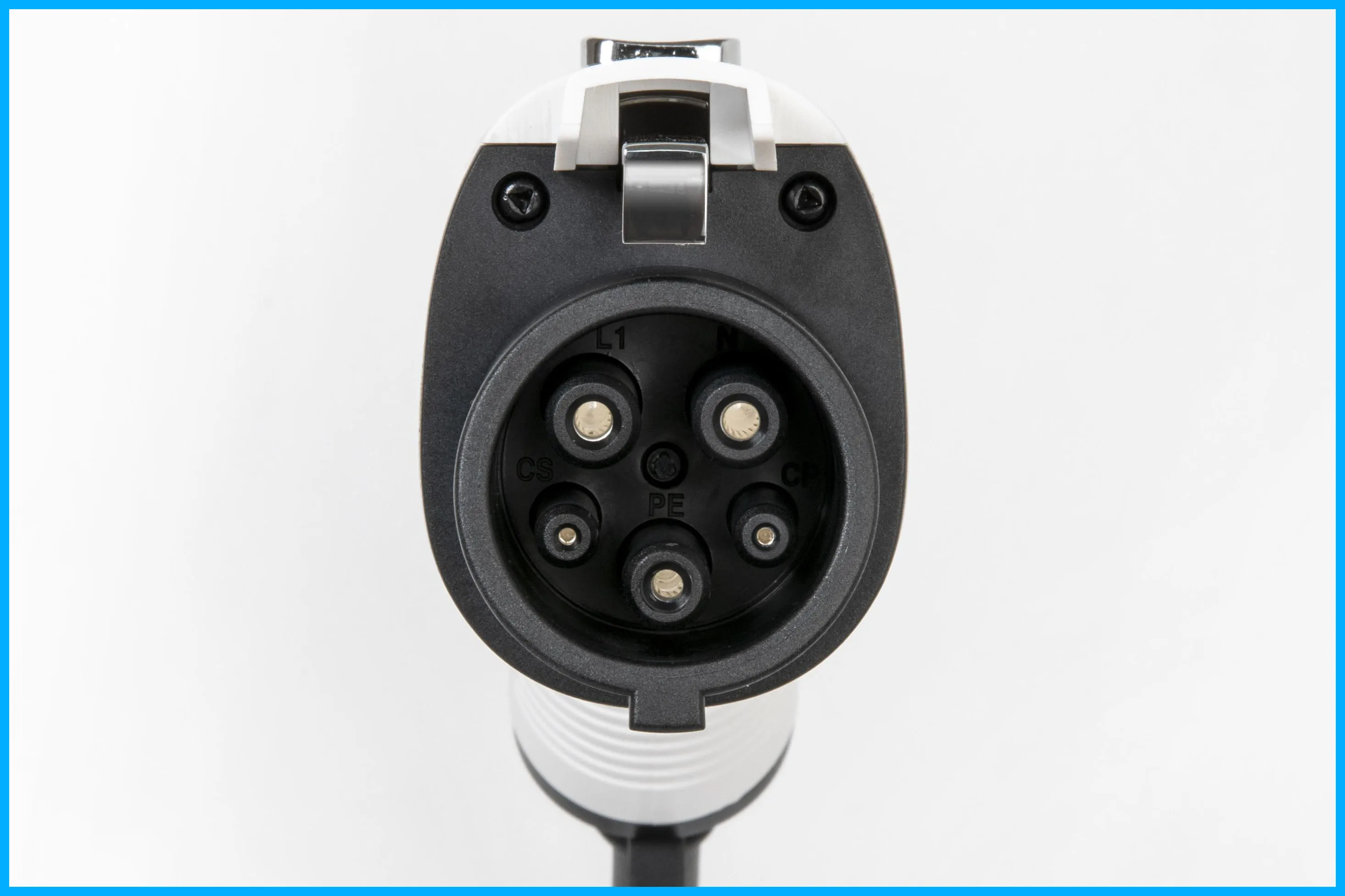

Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Â
Temperature Monitoring
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.
CAUTION:
1. Don’t submerge the EV charging cable in water.
2. Don’t step on, fold or knot the cable.
3. Don’t drop the EV charging box or place a heavy object on it.
4. Don’t place the charging cable near high temperature object when charging.
5. Don’t operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don’t put fingers into the charging connector when the power plug is still connecting to the power.
8. Don’t use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don’t use this device with other brand’s extension cord or adapter.
2. Don’t step on, fold or knot the cable.
3. Don’t drop the EV charging box or place a heavy object on it.
4. Don’t place the charging cable near high temperature object when charging.
5. Don’t operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don’t put fingers into the charging connector when the power plug is still connecting to the power.
8. Don’t use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don’t use this device with other brand’s extension cord or adapter.
